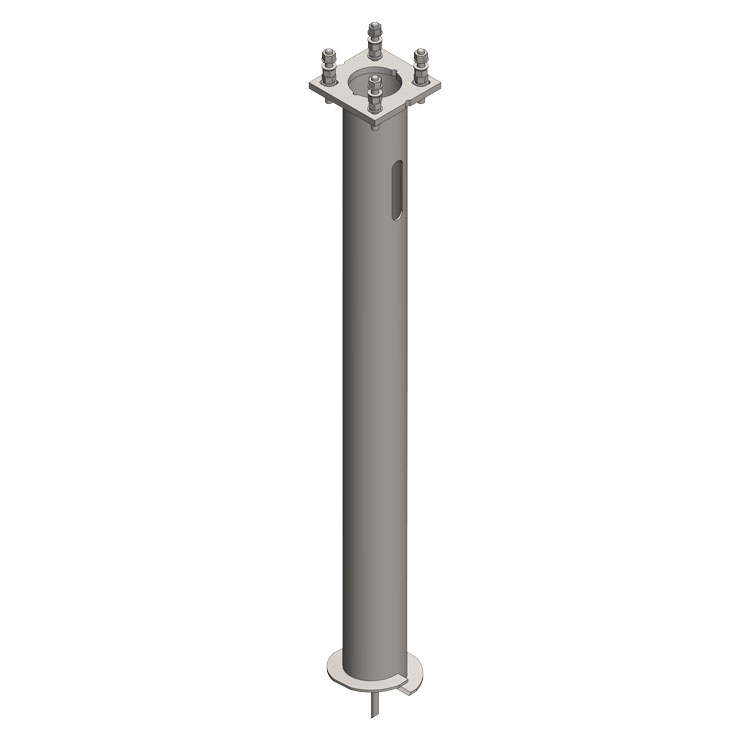

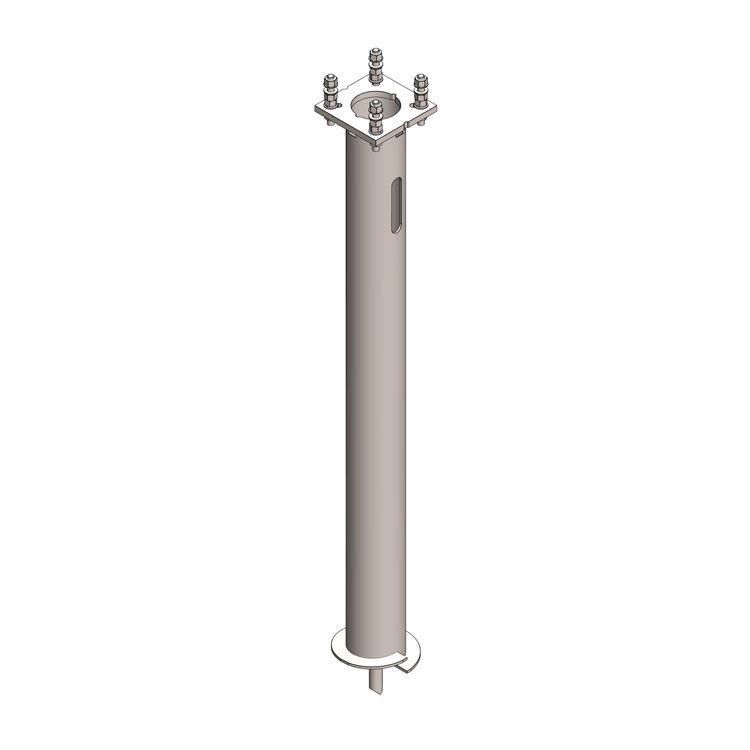

10” x 10 ft Helical Pier Foundation with 1.25” Gusseted Base Plate

Product Classification

Part Number 400-000-1412

Product Type 10” x 10 ft Helical Pier Foundation with 1.25” Gusseted Base Plate

General Specifications

Application Elevated Platforms, Landings, Towers

Dimensions

Width 15.5 in [393.7 mm]

Length 120 in [3,048 mm]

Diameter 10.75 in [273 mm]

Cableway 2.5 in [63.5 mm]

Weight, Total 511.73 lb [232.12 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
