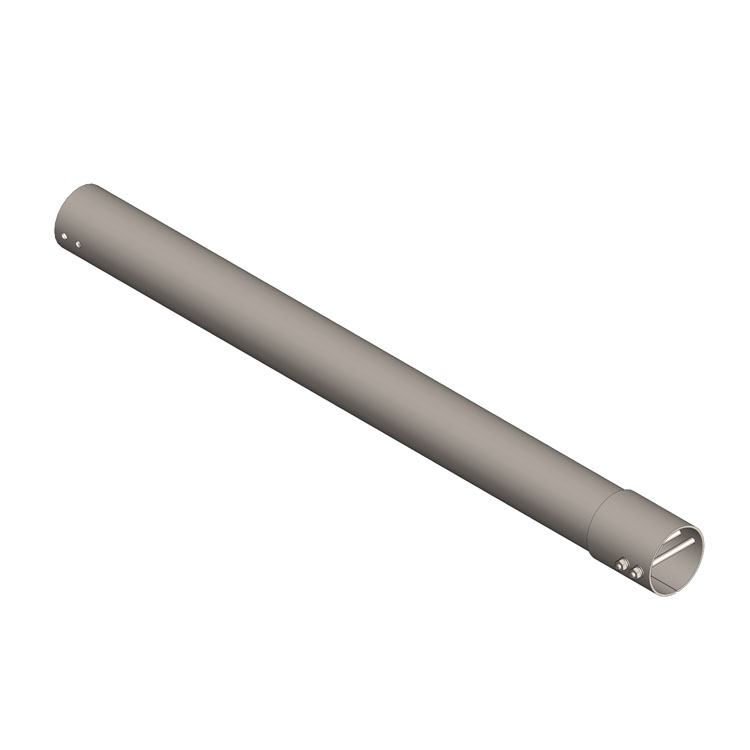

10” X 10′ Extension for Triple Flight Helicals

Product Classification

Part Number 1007-0010-0006

Product Type 10” X 10′ Extension for Triple Flight Helicals

General Specifications

Application This extension is designed for use with the 10” x 11 ft Helical Pier Foundation with Triple 20” Flights, providing additional length to reach deeper, more stable soil layers.

Dimensions

Height 127.25 in [3,232 mm]

Width 11.75 in [298.45 mm]

Weight, Total 462.3 lb [209.7 kg]

Material Specifications

Material Type / Grade Stainless Steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Download Drawing
