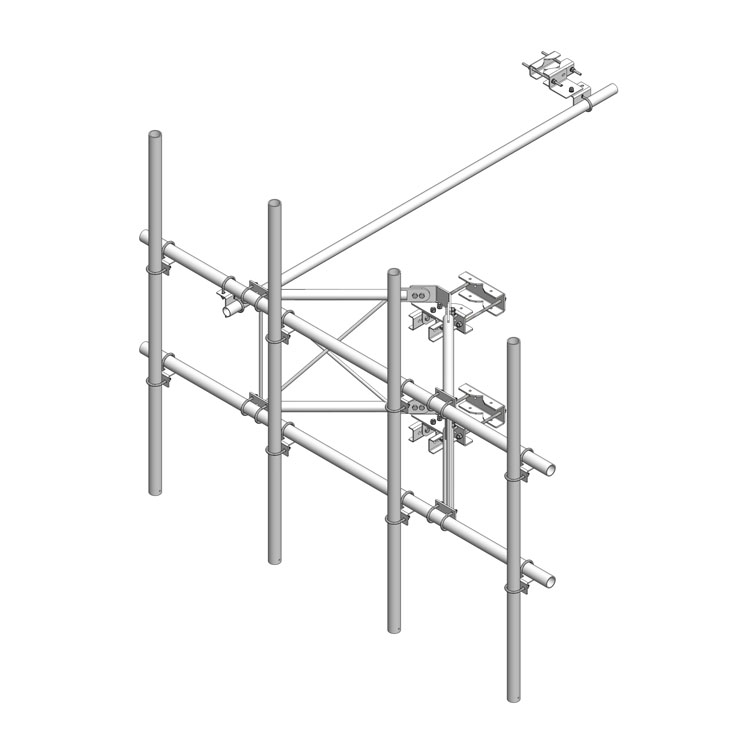

1 Sector, 4 Unit Tower Mount (126″ Face Width, 36″ Stand-Off)

Product Classification

Part Number 1000-0010-0394

Product Type 1 Sector, 4 Unit Tower Mount (126″ Face Width, 36″ Stand-Off)

General Specifications

Application Antenna/Radio mount

Mounting 2.5 – 8 in [64 – 203 mm] OD

Pipe, Quantity 4

Tower Taper Non-tapered | Tapered

Dimensions

Height 96 in [2438 mm]

Vertical Pipe Diameter 2.875 in [73 mm]

Pipe Length 96 in [2438 mm]

Face Width 126 in [3,200.4 mm]

Horizontal Pipe Diameter 2.875 in [73 mm]

Mounting Diameter, maximum 8.63 in [219 mm]

Mounting Diameter, minimum 2.9 in [73 mm]

Stand-off Distance 35 in [889 mm]

Weight, Total 592.38 lb [268.7 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
