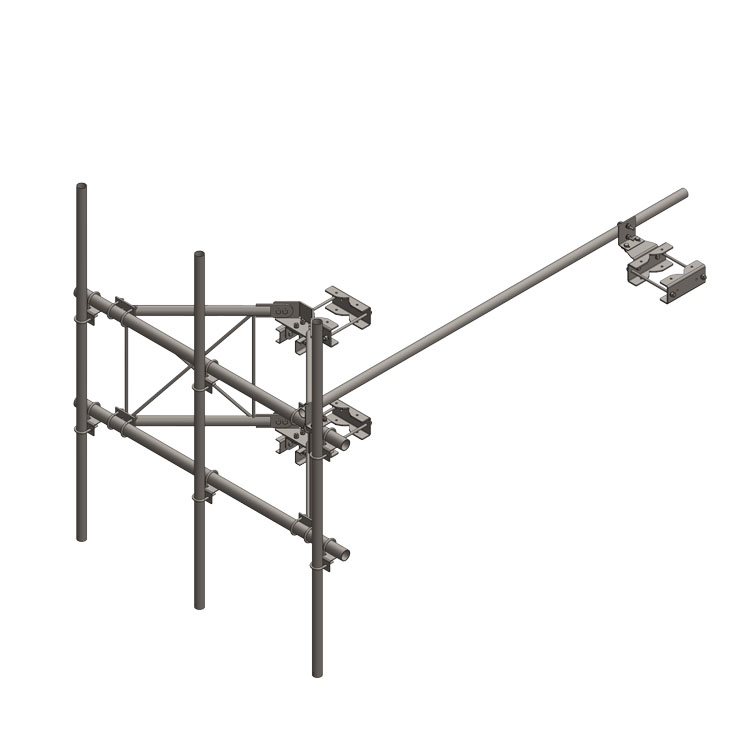

1 Sector, 3 Unit Tower Mount

Product Classification

Part Number 1012-0010-1331

Product Type 3 Mount Sector Frame

General Specifications

Application Antenna/Radio mount

Mounting 8.625 โ€“ 2.875 in [219.08 โ€“ 73.03 mm] OD

Pipe, Quantity 3

Tower Taper Non-tapered | Tapered

Dimensions

Height 96 in [2438.4 mm]

Vertical Pipe Dia. 2 in [50.8 mm]

Pipe Length 96 in [2438.4 mm]

Face Width 84 in [2133.6 mm]

Mounting Dia., max. 8.625 in [219.08 mm]

Mounting Dia., min. 2.875 in [130.18 mm]

Stand-off Distance 37.25 in [946.15 mm]

Weight, Total 469.38 lb [212.91 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222



Print Spec Sheet
